dhtmlxColorPicker integration. A data field with pop-up colorPicker.

Please note, to use colorpicker item you must include several dhtmlxColorPicker related files:

1.If you use dhtmlxColorPicker standalone you need to include 3 files:

<script src="../codebase/dhtmlxcolorpicker.js"></script>
<link rel="stylesheet" type="text/css" href="../codebase/dhtmlxcolorpicker.css">
<script src="../codebase/ext/dhtmlxform_item_dhxcolorpicker.js"></script>

2.If you use dhtmlxColorPicker as a part of 'dhtmlxSuite' package you need to include 2 files:

<link rel="STYLESHEET" type="text/css" href="../codebase/dhtmlx.css">
<script src="../codebase/dhtmlx.js" type="text/javascript"></script>

Attributes

className - (string) the user-defined css class for item
imagePath - (url) the relative path to colorPicker's images (dhtmlxColorPicker/codebase/imgs/)
inputHeight - (integer or auto) sets input height. The default value is auto
inputLeft - (integer) the left absolute offset of input. Just position:“absolute” makes sense of the attribute
inputTop - (integer) the top absolute offset of input. Just position:“absolute” makes sense of the attribute
inputWidth - (integer or auto) sets input width. The default value is auto
label - (string) the text label of item
labelAlign - (left, right or center) the alignment of label within the defined width
labelHeight - (integer or auto) the height of label. The default value is auto
labelLeft - (integer) the left absolute offset of label. Just position:“absolute” makes sense of the attribute
labelTop - (integer) the top absolute offset of label. Just position:“absolute” makes sense of the attribute
labelWidth - (integer or auto) the width of label. The default value is auto
name - (string) the identification name. Used for referring to item
offsetLeft - (integer) sets the left relative offset of item (both input and label)
offsetTop - (integer) sets the top relative offset of item (both input and label)
position - (label-left, label-right, label-top or absolute) defines the position of label relative to input
value - (string) the initial value of item

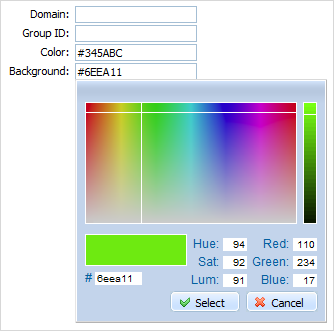

var formData = [
		{type: "settings", labelAlign:'right', labelWidth: 70},
		{type: 'input', name: 'Domain', id:'Domain', label: 'Domain:'},
		{type: 'input', name: 'GroupID', id:'GroupID', label: 'Group ID:'},
		{type: 'colorpicker', name: 'Color', label: 'Color:', value:"#345ABC", imagePath: "../dhtmlxColorPicker/codebase/imgs/"},
		{type: 'colorpicker', name: 'Background', label: 'Background:', value:"#6EEA11", imagePath: "../dhtmlxColorPicker/codebase/imgs/"}
];
